Description
A dedicated laboratory water bath system with an 8-position configuration, manufactured by DAIHAN Scientific (South Korea). The key distinguishing feature of this model compared to the WEB-4 and WEB-6 series is its 2 × 4 layout arrangement (instead of a single extended linear row). This compact design significantly improves space efficiency while enhancing parallel sample processing capacity for applications such as Soxhlet fat extraction, solvent distillation, and index determination tests.
Product code: DH.WEB01008
CAS NO:
Brand: DAIHAN
Origin: HÀN QUỐC
Overview & Features
Space-Saving 4 × 2 Configuration: The arrangement of 8 positions into two parallel rows significantly reduces the overall bath length compared to linear layouts. The unit can be conveniently installed inside standard fume hoods without occupying excessive working space.
High-Performance Dual Heating System: A total heating capacity of 2.8 kW (split into two 1.4 kW heating boards) ensures continuous and uniform steam generation across all 8 positions, making it ideal for high-boiling-point solvents.
Fuzzy Logic Digital Control System: Maintains highly stable temperature regulation and prevents sudden overshoot that could degrade samples or solvents. The proprietary Jog-Shuttle push-and-turn knob allows intuitive one-handed operation for quick parameter setup.
Backlit LCD Display: Provides simultaneous display of set value and actual water temperature, enabling easy remote monitoring by laboratory personnel.
SUS304 Stainless Steel Construction: The bath chamber, support frame, and concentric ring lid system are all made of high-grade stainless steel, offering excellent resistance to corrosion from acids and volatile organic solvents used during extraction processes.
Maximum Safety Protection System:
Low Water Level Warning & Auto Cut-Off: Automatically shuts down the heating system when water level drops due to long evaporation periods, preventing heater damage.
Automatic shutdown in case of over-temperature or over-current conditions.
Locking Mode: Prevents accidental adjustment of parameters during operation.
Self-Compensation Function: Allows calibration of temperature deviation between actual bath conditions and controller readings within an adjustable range of ±10.0°C.

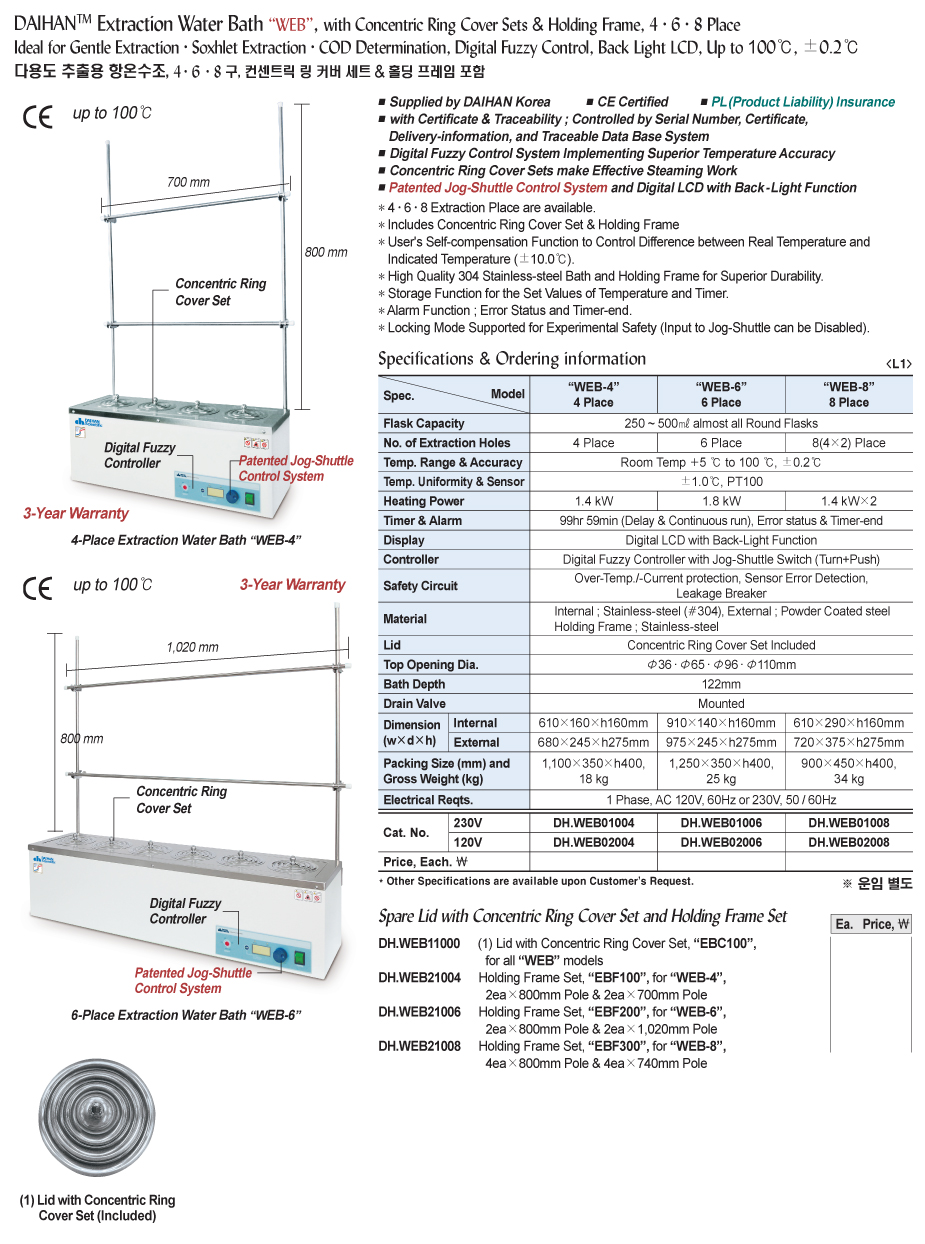

Specifications
