Description

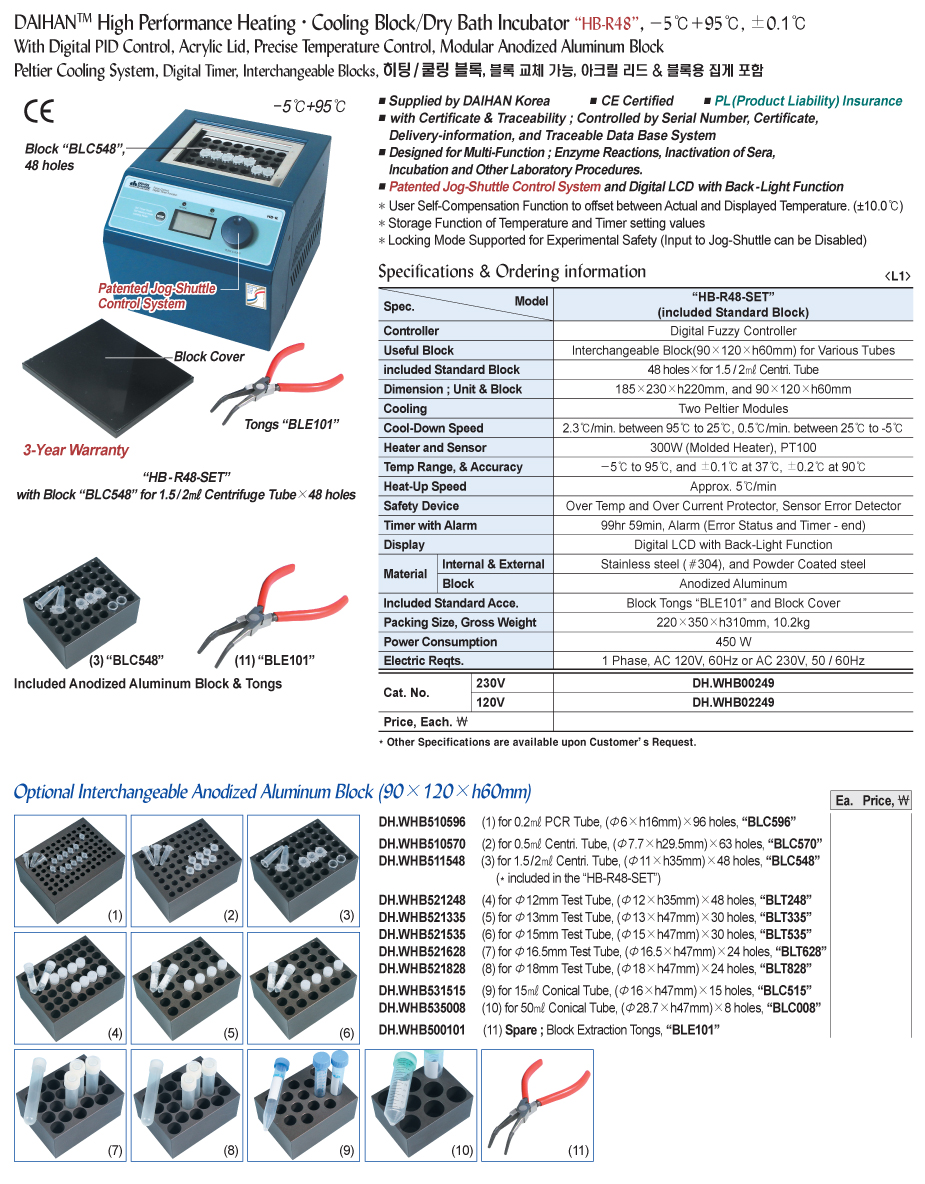

High-performance Dry Heating & Cooling Incubator DaiHan HB-R48-Set (DH.WHB00249) is a premium temperature control laboratory instrument manufactured by DAIHAN Scientific Co., Ltd. (Korea).
Product code: DH.WHB00249
CAS NO:
Brand: DAIHAN
Origin: HÀN QUỐC
Overview & Features
Versatile Applications: Ideal for enzyme reactions, serum inactivation, sample incubation, and other molecular biology procedures in laboratory environments.
Advanced Control Technology: Equipped with an intelligent Fuzzy PID digital controller combined with a Jog-Shuttle dial, enabling fast and precise parameter setting.
Display System: LCD display with backlight ensures clear visibility under all lighting conditions.
Automatic Temperature Compensation Function: Allows users to set temperature offset between actual sample temperature and displayed temperature within a range of ±10.0°C.
Memory Function: Automatically stores previously set temperature and time values for convenient reuse in subsequent operations.
Safety System: Integrated locking mode prevents accidental parameter changes, along with over-current protection, over-temperature protection, and sensor failure detection.
Durable Construction: Housing made of stainless steel combined with powder-coated steel, while the heating block is constructed from anodized aluminum for optimal heat transfer efficiency.
Complete Set Configuration: Model DH.WHB00249 includes main unit, acrylic lid, dedicated block removal clamp (BLE101), and a standard 48-position block for 1.5 mL / 2.0 mL microcentrifuge tubes.
Specifications
Temperature Control Range: -5°C to 95°C
Temperature Accuracy: ±0.1°C (at 37°C) and ±0.2°C (at 90°C)
Cooling System: Dual Peltier modules (thermoelectric heat pump system)
Cooling Rate:
• 2.3°C/min (from 95°C to 25°C)
• 0.5°C/min (from 25°C to -5°C)
Heating System: Molded heater, 300 W output power
Heating Rate: Approximately 5°C/min
Temperature Sensor: High-precision PT100 sensor
Timer: Up to 99 hours 59 minutes (audible alarm for completion or error notification)
Included Block: 48-position aluminum block for 1.5 mL / 2.0 mL microcentrifuge tubes
Unit Dimensions:
• Main unit: 185 × 230 × H220 mm
• Block: 90 × 120 × H60 mm
Packing Dimensions: 350 × 220 × H310 mm
Gross Weight: Approximately 9 kg
Power Supply: Single phase, AC 230 V, 50/60 Hz
Power Consumption: 450 W
