Description
The Daihan Digital Multi-Position Magnetic Stirrer, Model MS-MP8 (Ordering No.: DH.WMS03038), is a premium multi-position simultaneous stirring system manufactured by Daihan Scientific, South Korea. The unit is designed to operate 8 stirring positions simultaneously (2 × 4 grid configuration) under identical speed and time settings, enabling highly efficient parallel processing and ensuring absolute consistency across samples. It is ideally suited for high-throughput comparative testing in microbiology, biology, and pharmaceutical laboratory applications.
Product code: DH.WMS03038
CAS NO:
Brand: DAIHAN
Origin: HÀN QUỐC
Overview & Features
High-Throughput Synchronized Multi-Position Stirring: The system integrates an intelligent microprocessor controller to operate 8 stirring positions simultaneously at identical rotational speed. This design eliminates sample-to-sample deviation, making it highly suitable for quality screening workflows and parallel experimental testing.
Advanced PID Digital Feedback Control System: The unit employs next-generation PID feedback microprocessor technology for extremely stable speed control. The system automatically detects load variations and compensates for changes in viscosity or volume, ensuring stable stir bar operation without jumping or decentering.
Intuitive Jog-Shuttle Control Interface: Operation is simplified through a proprietary single Jog-Shuttle rotary push knob. Users can quickly set parameters by rotating the dial and confirm start or pause by pressing it.
Backlit LCD Display: The instrument features a high-resolution digital LCD display showing real-time stirring speed and time settings. The backlight function allows easy monitoring from a distance or under low-light conditions.
Premium SUS304 Stainless Steel Work Surface: The entire work plate is made of high-grade SUS304 stainless steel, offering excellent mechanical strength, durability, stain resistance, and easy cleaning after use.
Smart Timer and Safety Lock Function: The system includes a digital timer with automatic shut-off and audible alarm upon completion. A safety lock mode disables the Jog-Shuttle control to prevent accidental parameter changes during operation.
Safe Operation in Incubators: With a tightly sealed powder-coated steel housing and ultra-low heat generation motor, the unit operates reliably and safely even when installed inside incubators or climate-controlled chambers.

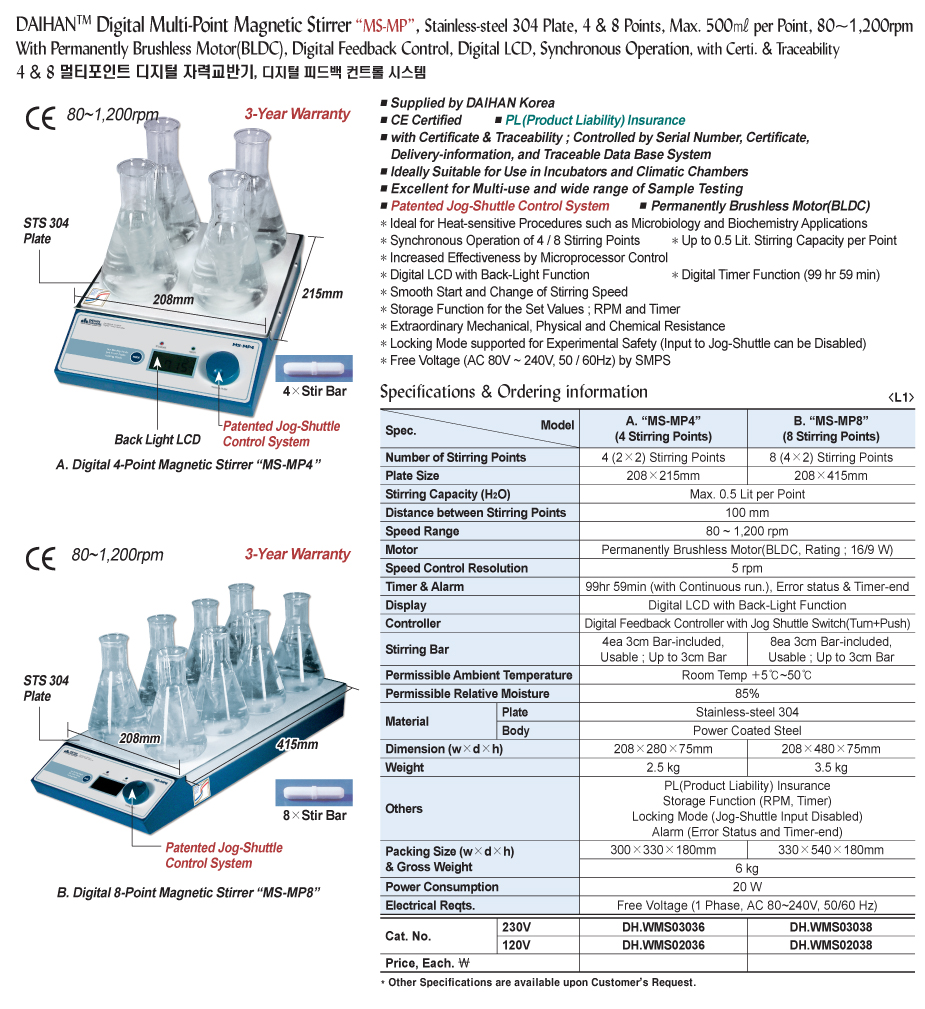

Specifications
Model: MS-MP8 (8-Position Digital Magnetic Stirrer)
Ordering No.: DH.WMS03038 (230V standard version)
Manufacturer: Daihan Scientific
Country of Origin: South Korea (with full serial number traceability for quality control)
Number of Stirring Positions: 8 points (2 × 4 parallel grid configuration)
Maximum Stirring Volume per Position: Up to 0.5 L (500 mL per sample)
Center-to-Center Distance: 100 mm
Stirring Speed Range: 80 to 1,200 rpm
Speed Control Resolution: 5 rpm step increments
Control System: Digital PID feedback controller with dedicated Jog-Shuttle rotary push knob
Display: Large backlit digital LCD display with clear readability
Built-in Timer: 1 min to 99 h 59 min, with continuous operation mode available
Safety Alarm System: Audible alarm for timer completion and system error notifications during operation
Work Surface Dimensions: 210 × 500 mm
Material: SUS304 stainless steel work plate; powder-coated steel housing with high strength and heat resistance
Recommended Stir Bars: Supplied with 8 × 30 mm PTFE-coated magnetic stir bars (optimal performance up to 30 mm length)
Operating Conditions: +5°C to 50°C, relative humidity < 85% RH
Motor Power (Input / Output): 32 W / 18 W
Total Power Consumption: 40 W
Dimensions (W × D × H): 21.0 × 50.0 × 6.5 cm
Weight: 4.0 kg
Power Supply: Single-phase AC 230V, 50/60 Hz (fully compatible with Vietnam power grid)
