Description

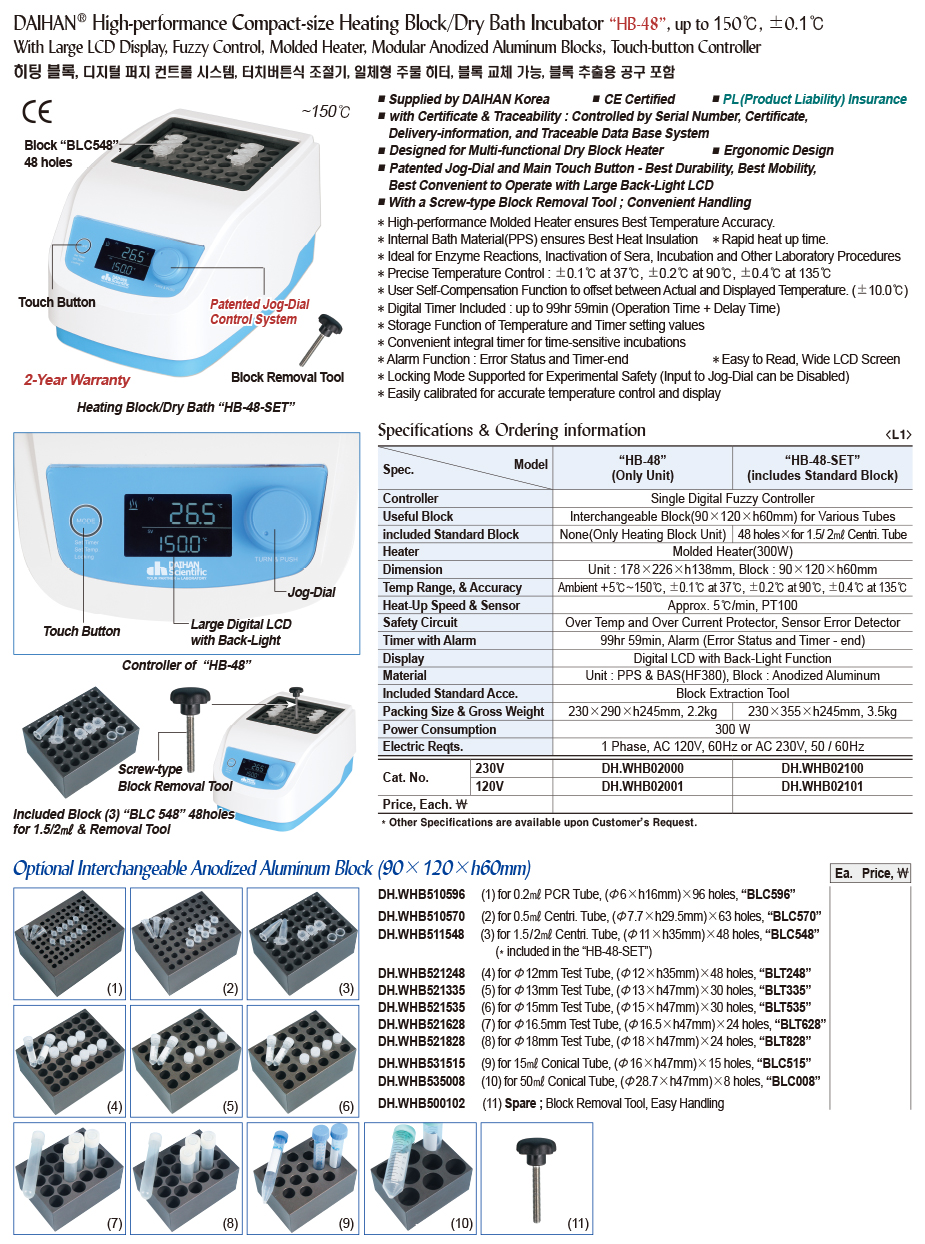

A premium integrated equipment package manufactured by DAIHAN Scientific (South Korea). The key difference of the “Set” version (model **DH.WHB02100**) compared to the base unit is that it includes a standard anodized aluminum block (**Model: BLC548**) with 48 positions for 1.5/2.0 mL microcentrifuge tubes, allowing users to operate the system immediately without purchasing additional accessories.
Product code: DH.WHB02100
CAS NO:
Brand: DAIHAN
Origin: HÀN QUỐC
Overview & Features
Advanced Fuzzy Control System: Equipped with a next-generation Digital Fuzzy Control system combined with touch-button operation and a Jog-Dial push-and-turn knob for highly intuitive control. Users can quickly and precisely set temperature and time parameters with high accuracy up to ±0.1°C.
Complete “Set” Configuration: Supplied with a premium 48-position aluminum block designed for 1.5 mL and 2.0 mL Eppendorf/microcentrifuge tubes. The package also includes a dedicated Block Extractor tool, enabling safe and easy replacement of interchangeable blocks.
High-Performance PPS Housing: The core structure and block chamber are made of high-grade PPS (Polyphenylene Sulfide) engineering polymer combined with a durable ABS outer casing. This construction provides excellent thermal insulation, strong chemical resistance, and safe touch operation without burn risk.
Molded Heating System: The integrated molded heater surrounds the block chamber to ensure uniform heat distribution and rapid temperature increase (approximately 5°C/min).
Automatic Self-Compensation Function: Enables calibration and compensation of temperature deviation between the actual aluminum block temperature and the displayed value on the LCD, with an adjustable range of up to ±10.0°C.
Specifications
Model: MaXtable H20
Controller: Single-channel digital Fuzzy Controller
Block capacity: 48 × 1.5/2.0 mL tubes
Heating power: 300 W
Dimensions (W × D × H):
Main unit: 178 × 226 × 138 mm
Block: 90 × 120 × 60 mm
Temperature range: Ambient +5°C to 150°C
Temperature accuracy:
±0.1°C at 37°C
±0.2°C at 90°C
±0.4°C at 135°C
Heating rate / sensor: Approx. 5°C/min, PT100 sensor
Safety functions: Over-temperature protection, over-current protection, sensor failure detection
Timer & alarm: 99 h 59 min, alarm for error status and cycle completion
Display: Backlit digital LCD
Materials:
Housing: PPS and ABS (HF380)
Block: Powder-coated aluminum
Packing size (W × D × H): 230 × 355 × 245 mm
Gross weight: 3.5 kg
Power supply: 220 V, 50 Hz, single phase
