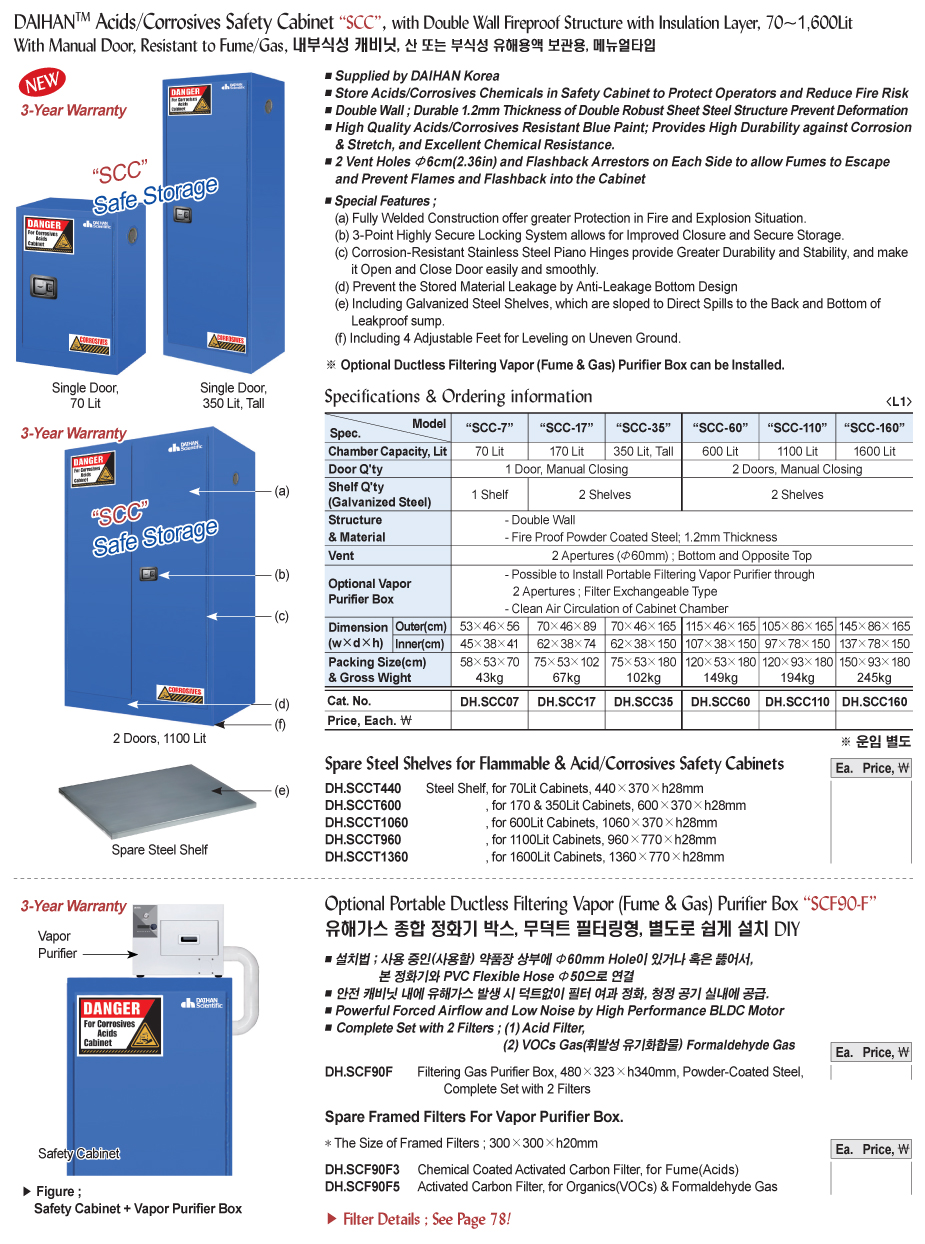

Safety Cabinets for Acid Corrosives, 2 Door, Manual, 2-Shelf, 600Lit DH.SCC60

Safety Cabinets for Acid Corrosives, 2 Door, Manual, 2-Shelf, 600Lit DH.SCC60

Description

The SciLab Acid and Corrosive Chemical Storage Cabinet, Model SCC-60 (Ordering No.: DH.SCC60 / Manufacturer Code: SL.SCCS60), is a large-capacity, heavy-duty safety cabinet manufactured by SciLab, South Korea. It is specifically designed for the centralized storage of large quantities of highly corrosive chemicals, including strong acids and alkalis, providing maximum protection for laboratory personnel while effectively reducing the risk of fire, explosion, and airborne contamination in laboratory and industrial environments.

Product code: DH.SCC60

CAS NO:

Brand: DAIHAN

Origin: HÀN QUỐC

Overview & Features

Chemical-Resistant Electrostatic Powder Coating: The entire cabinet surface is finished with a distinctive blue electrostatic powder coating. This high-durability coating provides excellent resistance to strong acids and alkalis, while also protecting the internal steel structure from corrosion caused by accumulated chemical vapors.

Double-Wall Insulated Construction: The cabinet is built with a robust double-wall structure consisting of two 1.2 mm thick high-strength steel panels. A dedicated insulating air gap is incorporated between the panels, ensuring effective protection of stored chemicals against high external temperatures or fire exposure.

Dual Manual Door Design: The cabinet is equipped with a two-door manual-opening system (non-self-closing), combined with a secure locking handle mechanism. This design provides a wide working opening, allowing users to easily load and arrange large containers such as drums, jerry cans, or chemical bottles.

Flexible Shelving System: The unit is supplied with two heavy-duty galvanized steel shelves designed for high load capacity. The vertical adjustment slots inside the cabinet allow users to freely change shelf height and spacing to suit different container sizes.

Ventilation and Airflow System: The cabinet features two Ø60 mm ventilation ports located symmetrically at the top and bottom, fitted with flame-arresting mesh screens for safety. This system supports flexible connection to a centralized exhaust duct or external portable chemical fume filtration units for effective removal of hazardous vapors.

Specifications

Model: SCC-60

Ordering No.: DH.SCC60 (Official Manufacturer Code: SL.SCCS60)

Manufacturer: SciLab

Country of Origin: South Korea

Storage Capacity: 600 L (approximately 60 gallons, suitable for large-volume chemical storage)

Cabinet Construction: Double-wall structure with two 1.2 mm thick steel panels, finished with a blue electrostatic powder coating providing excellent chemical corrosion resistance and heat resistance

Door Configuration: Double-door manual-opening system (Manual)

Number of Shelves Supplied: 2 heavy-duty galvanized steel shelves with adjustable height positioning

Ventilation System: Equipped with two Ø60 mm ventilation ports arranged symmetrically and fitted with integrated flame-arresting mesh screens for enhanced safety

External Dimensions (W × D × H): 109 × 86 × 112 cm (1090 × 860 × 1120 mm)

Internal Dimensions (W × D × H): 101 × 78 × 97 cm (1010 × 780 × 970 mm)
