SMART Oven, Forced Convection, Viewing Window, ThermoStable SOF-W105, 105Lit., 230V
Zalo
Description

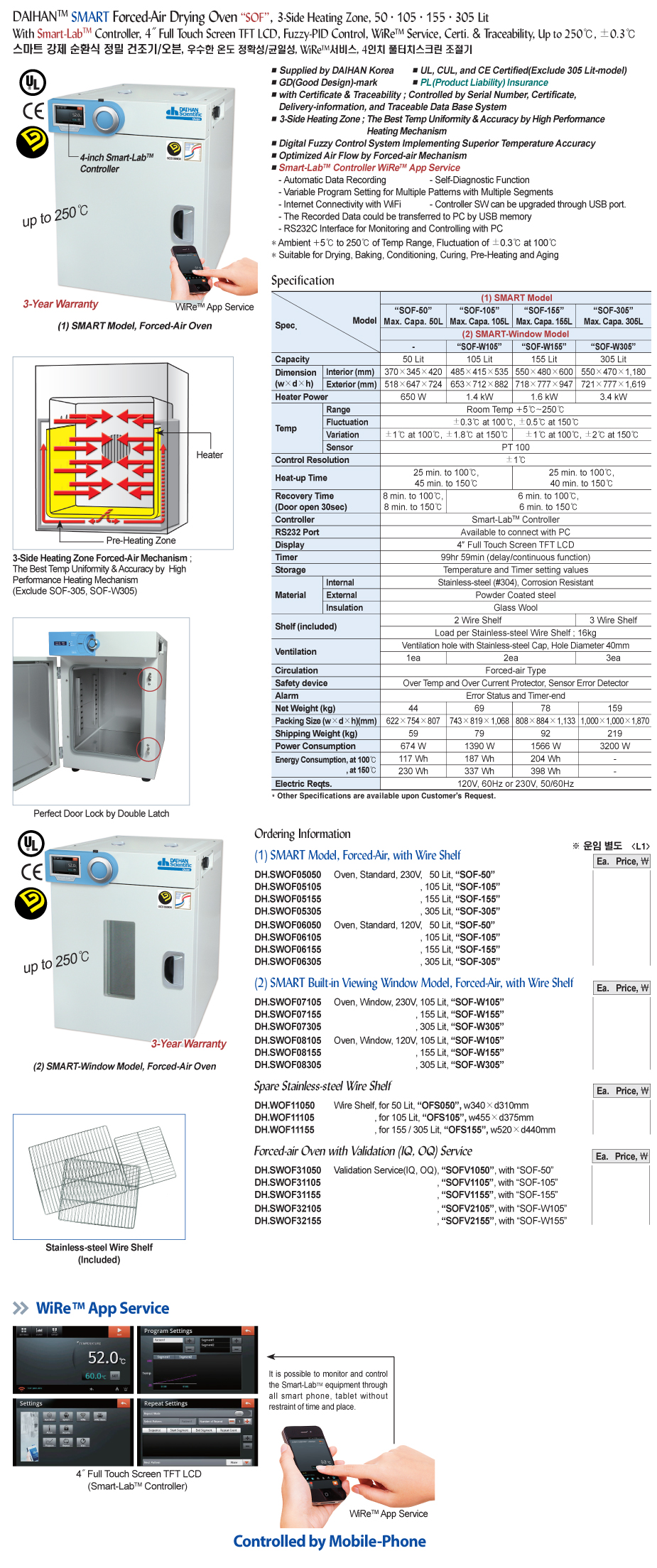

The DAIHAN ThermoStable SOF-W105 Forced Convection Drying Oven with Viewing Window (Model: DH.SWOF07105) is a premium high-temperature drying oven belonging to the Smart-Lab™ ecosystem, developed and manufactured by DAIHAN Scientific (Korea). The SOF-W105 version (Model No. DH.SWOF07105) delivers an advanced hybrid solution by combining a full-touch control interface, Wi-Fi connectivity, and a heat-resistant tempered glass viewing window integrated into the front door. This enhancement allows technicians to visually monitor sample changes both remotely and directly without opening the chamber door, thereby minimizing heat loss, improving energy efficiency, and ensuring maximum operator safety.
Product code: DH.SWOF07105
CAS NO:
Brand: DAIHAN
Origin: HÀN QUỐC
Overview & Features
Smart-Lab™ Control Technology: Equipped with an advanced fast-response feedback Fuzzy-PID microprocessor and a 4-inch TFT capacitive full-touch LCD display. The system enables smooth drying program setup, automatic process data logging, and real-time temperature trend graph visualization.
Wi-Fi Connectivity (WiRE™ Service): Integrated Wi-Fi module allows wireless internet connection. Operators can remotely manage operating parameters, monitor process data, and receive real-time push notifications for system alarms such as over-temperature, power failure, or door-open alerts directly on a smartphone.
Forced-Air Convection System: Utilizes a high-performance circulation fan to continuously distribute airflow throughout the chamber. This design ensures excellent temperature uniformity, eliminates thermal stratification between sample layers, and significantly accelerates moisture evaporation.
3-Side Heating System: Heating elements are strategically arranged on three sides of the chamber, optimizing heat absorption efficiency. This configuration enables rapid achievement of the set temperature and fast thermal recovery after door opening and closing.
High-Quality Mechanical Construction: The inner chamber is made entirely of high-grade Stainless Steel (#304), providing excellent mechanical strength and chemical corrosion resistance. The outer housing is constructed from heavy-duty steel with a zinc-coated powder finish, while high-density glass wool insulation ensures optimal thermal retention and safety.
Data Backup & Communication Interfaces: A front-mounted USB port allows users to export temperature logs or update system software, while a rear RS232C port enables connection to PC-based monitoring and control software.
Advanced Safety System: Integrated safety features include automatic over-temperature shutdown, over-current protection, automatic sensor failure diagnostics, and a touchscreen lock function for operational safety.
