Description
DURAN Scientific NMR Tube, 500 MHz (Cat. No. DU.231700314 / 231700314) is the highest analytical instrument within the precision hierarchy manufactured by DWK Life Sciences (Germany) under the DURAN brand name. This equipment features ultra-precise geometric design and calibration, specifically engineered for high-resolution Nuclear Magnetic Resonance (NMR) spectroscopy measurements on high-field NMR spectrometer systems operating at frequencies up to 500 MHz
Product code: DU.231700314
CAS NO:
Brand: DAIHAN
Origin: HÀN QUỐC
Overview & Features
Top-Tier Quality Positioning: Part of the Scientific line, this product range meets the manufacturer's most stringent geometric tolerance standards. This design virtually eliminates spin errors, peak distortions, and sideband artifacts, ensuring complex molecular structures are resolved with absolute clarity and precision.
Ultra-Pure Borosilicate 3.3 Glass: The tubes are fabricated entirely from DURAN Borosilicate 3.3 thermal glass. The material is completely free of magnetic impurities to prevent any interference with the magnetic fields of high-intensity superconducting magnets.
Excellent Straightness and Uniformity: Camber is tightly controlled to an extreme limit. This ensures the tubes operate with maximum safety and smoothness on automated sample changers (Autosamplers) or during high-throughput screening procedures without risk of jamming or breakage.
Rigorous Quality Management: Each individual tube undergoes automated laser inspection scanning at the German factory. The tube body features an integrated Retrace Code, allowing users to download the Certificate of Quality for that specific production batch online.
Premium Standard Packaging: Comes supplied complete with specialized plastic caps to securely seal the samples and prevent the evaporation of expensive deuterated solvents.

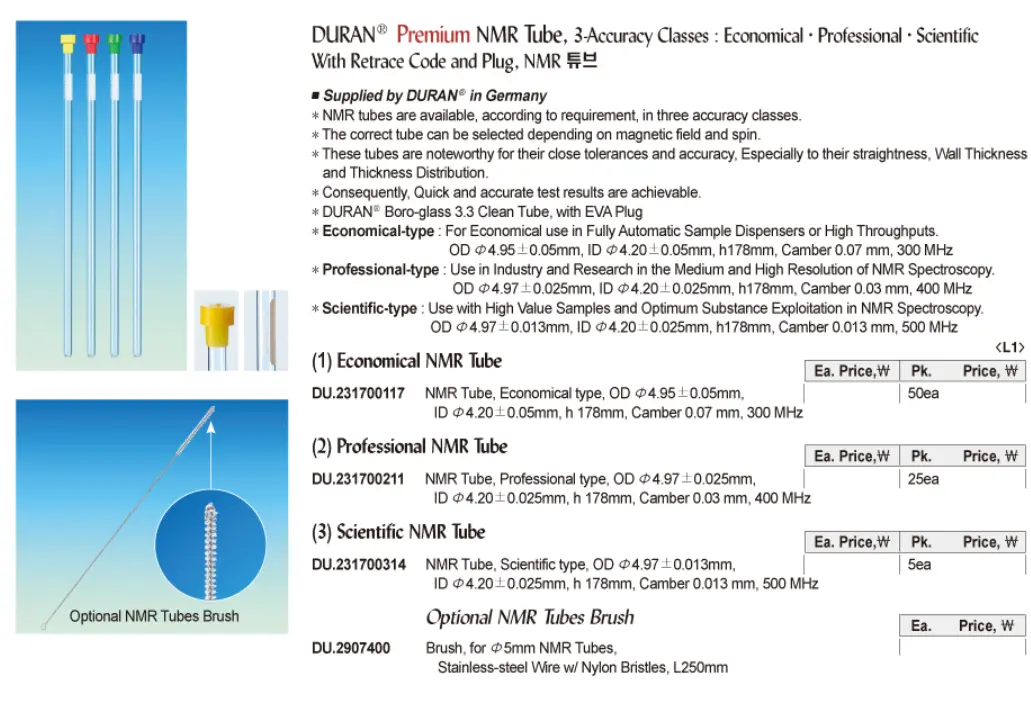

Specifications
Brand - Origin: DURAN - Germany (Under DWK Life Sciences)
Catalog Number: DU.231700314 (Factory code: 231700314)
Accuracy Classification: Top-tier Scientific Type
Optimal Operating Frequency: Up to 500 MHz
Overall Length (L): 178 mm (Approximately 7 inches)
Outer Diameter (OD): 4.97 ± 0.013 mm (Ultra-small tolerance, twice the precision of the 400MHz line)
Inner Diameter (ID): 4.20 ± 0.013 mm
Wall Thickness: 0.75 mm (Ideal uniform distribution)
Maximum Camber: ≤ 13 µm (0.013 mm) (Ensures absolute concentric rotation)
Standard Packaging: Small box of 5 pieces/box (Convenient for advanced research laboratories)
